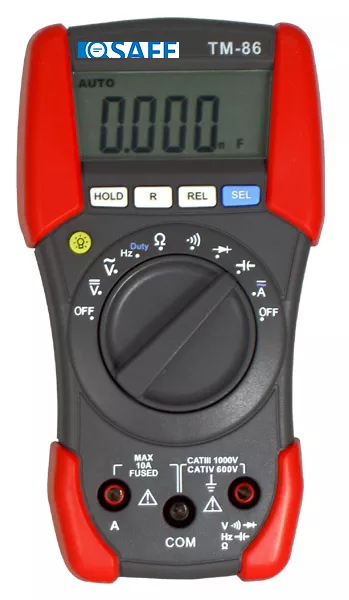

TM-86 Multimeter
TM-86 Multimeter has been designed for use in environments of pollution degree 2. It can be used for VOLTAGE and CURRENT measurements on installations of overvoltage CAT III 1000V and CAT IV 600V. This instrument is not suitable for measurements of non sine wave voltage and current. When using the instrument always respect the usual safety regulations aimed at protecting you against the dangerous electric currents and protecting the instrument against incorrect operations. Only the leads supplied with the instrument guarantee compliance with the safety standards in force. They must be in good conditions and, if necessary, replaced with identical ones. Do not test or connect to any circuit exceeding the specified overload protection.
Features
- CAT IV 600V.
- LCD Backlit Display, with maximum reading of 3999.
- AC voltage range: 0 to 600V.
- DC voltage range: 0 to 600V.
- AC Current range: 0.1A to 10A.
- DC Current range: 0.1A to 10A.
- Auto power off (15 minutes).
- ACV, DCV, ACA, DCA, Resistance, Diode, Frequency, Capacitance, Duty Cycle, Continuity.
- Range Hold.
- Data Hold.
- REL.
Technical Specifications
Items | Descriptions |
---|---|
Overvoltage Category | CAT IV 600V CAT III 1000V |
LCD | 3999 counts |
Sampling rate | 2.5/S |
Backlit | YES |
DC Voltage | 0.1mV~ 600V(0.8%+2) |
AC Voltage | 0.001V~600V(0.8%+3) |
DC Current | 0.01A~10A(1.2%+3) |
AC Current | 0.01A~10A(1.2%+3) |
Resistance | 400Ω, 4k, 40k, 400k, 4M,40MΩ |
Accuracy | ±1(1.0% + 2) |
Protection | 600Vrms |
Continuity Buzzer | YES |
Diode Test | YES |
Frequency | -0.01Hz~99.99KHz |
Duty Cycle | 20-80% |
Accuracy | ±1(3% + 5) |
