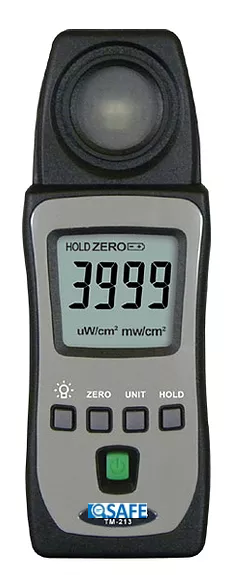

TM-213 Mini Pocket UV AB Meter
TM-213 Mini Pocket UV AB Meter
TM-213 is highly reliable direct reading Instrument designed expressly for measuring light intensity at the wafer plane of mask aligners.
UV curing light sources, and any other UV light source.The UVA Sensor is ideal for measuring mercury, xenon, metal halide or fluorescent lamps, commonly used for studies in the UVA region, as well as sunlight.
Features
- Auto power off.
- Zero function.
- Data hold.
Applications
- Ideal for measuring mercury.
- Xenon
- Metal halide or fluorescent lamps.
- commonly used for studies in the UVA region, as well as sunlight
Downloads
Technical Specifications
| Items | Description |
|---|---|
| Display | 3 3/4 digits LCD with backlit maximum reading 3999 |
| Measuring range | 4000uW/cm2, 20mW/cm2 |
| Resolution | 1uW/cm2, 0.01mW/cm2 |
| Accuracy | ±4%FS + 2dgt) /±15% sunlight ultraviolet |
| Wavelength | 290~390nm |
| Sample Time | Approx. 3 times/ sec. |
| Battery life | Approx. 100 hourr |
| Power Supply | 2 batteries 1.5V AAA |
| Weight | Approx. 90g |
| Size | 133(L)mm x 48(W)mm x 23 (H)mm |
