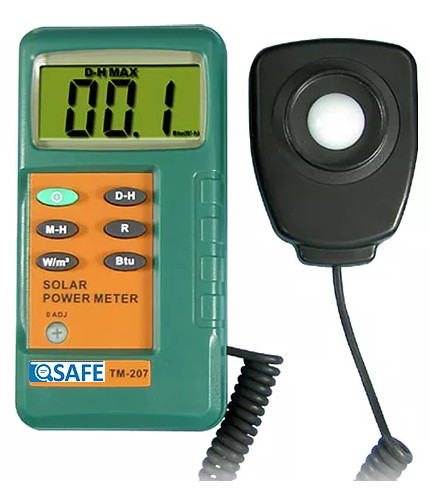

TM-207 Solar Power Meter

TM-207 Solar Power Meter

TM-207 Solar Power meter is ideal for the measurement of the solar radiation that is emitted by the sun from a nuclear fusion reaction that creates electromagnetic energy.
The spectrum of solar radiation is close to that of a black body with a temperature of about 5800 K. About half of the radiation is in the visible short-wave part of the electromagnetic spectrum. The other half is mostly in the near-infrared part, with some in the ultraviolet part of the spectrum.

Features

  • 3½ digits LCD display with maximum reading of 2000.
  • Select either W/m2 or BTU/ (ft2xh) units.
  • Data hold.
  • Max / Min hold.
  • Wire Length of the removable sensor : approximately 1.5M

Applications

  • Solar radiation measurement.
  • Solar power research.
  • Physics and optical laboratories.
  • Identify high performance windows.
  • Simple to use General data.

Downloads

Technical Specifications

Items Descriptions
Display 3½ digits, Max. indication 2000
Range 2000 W/m2, 634BTU / (ft2xh)
Resolution 0.1 W/m2, 0.1 BTU/ (ft2xh)
Accuracy Typically within +/- 10W/m2 [+/-3 BTU/ (ft2xh)] or +/- 5% whichever is greater in sunlight. Additional Temperature included error +/- 0.38 W/m2 / ºC [+/-0.12 BTU/ (ft2xh)] / ºC] deviation from 25 ºC.
Over-input Display shows "OL"
Sampling time Approx. 4 times / second
Battery life Approx. 100 hours.
Dimension 130x56x39mm. (LxWxH)
Weight Approx. 150g
