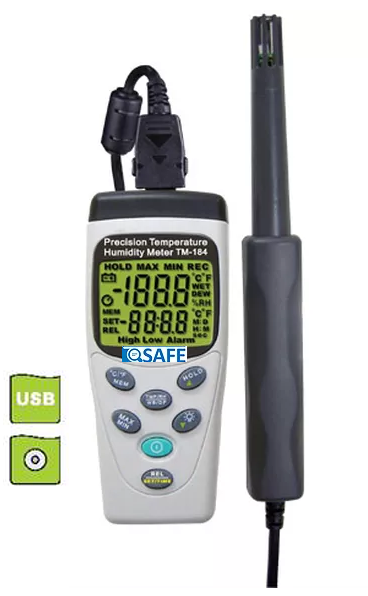

TM-184 Precision Temperature / Humidity Meter
TM-184 Precision Temperature / Humidity Meter is take accurate measurement for humidity, temperature, wet bulb and dew point. High accuracy measurement up to 1% RH. Light weight, pocket-sizes design.
Features
- Relative humidity range 1% to 99% RH.
- Temperature range from -20°C to 60°C (-4°F~140°F)
- Quick-response capacitance sensor with twist-open protective cover.
- Auto power off (adjustable from 0 to 99 min) with disable function.
- Max / Min and data hold
- Alarm for Hi and Low limit - Temperature and Humidity
- Low battery indication.
- Datalogging capacity: 30,000 records.
- Length of wire for sensor : approximately 1M.
- Blacklit function.
- Dew Point and Wet Bulb function.
- Real time clock with calendar
- Rel (relative) function.
Applications
- Maintenance
- Utility
- Technicians
- HAVC-service
Downloads
Technical Specifications
| Items | Description |
|---|---|
| Temperature Range | -20ºC ~ 60ºC (-4ºF ~ 140ºF) |
| Temperature Accuracy | ±0.5ºC, ±1.8ºF (0.0ºC~40.0ºC / 32.0ºF~104ºF); other ±2.0ºC / ±3.6ºF |
| Temperature Resolution | ±0.1ºC / 0.1ºF |
| Temperature Update Rate | 1 time / second |
| Temperature Sensor Type | Diode |
| Relative Humidity range | 1.0 ~ 99.0%RH |
| Relative Humidity Accuracy | ±1%RH (@25C 15%RH~90%RH) ; ±2.5%RH (@<15%RH, >90%RH) |
| Relative Humidity Resolution | 0.1% RH |
| Dew Pont Range | -30ºC tp 100ºC (-22 to 212ºF) |
| Wet Bulb Range | 0ºC to 80ºC (32 to 176ºF) |
| Relative Humidity Response Time | below 10 seconds |
| LCD Display | 42 x 32(1.655*1.26 inch) |
| Power Supply | DC 9V |
| Size | 130 x 56 x 38mm (L x W x H) |
| Weight | 250g |
