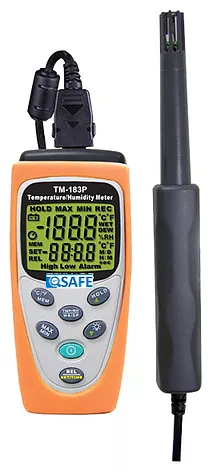

TM-183P Temperature / Humidity Meter
TM-183P Temperature / Humidity Meter is the perfect piece of equipment for industrial applications, laboratory and other types of work locations, because of its highly accurate sensor chip that measures relative humidity and temperature. For easy viewing the TM-183P has a dual display of temperature and humidity, with selectable temperature scales (°C / °F). Hold can be used on both temperature and humidity readings simultaneously, with both also giving hold Maximum, Minimum and Average readings with time marks simultaneously. Up to 200 readings can be stored.
Features
- Dual display of temperature and humidity.
- Select between different temperature scales (°C / °F).
- Simultaneously hold both temperature and humidity readings.
- Simultaneously hold both Maximum and Minimum and Average readings (MAX/MIN/AVG) with time marks.
- Relative subtraction value (REL) function.
- Alarm alert (SET) function.
- Auto-power off.
- DEW-POINT and WET-BULB temperature measurement.
- Stores up to 200 readings.
Standards
- CE
- ROHS
Applications
- Maintenance
- Utility
- Technicians
- HAVC-service
Technical Specifications
Items | Descriptions |
---|---|
Display | Dual LCD display. The maximum value on the primary display is 1999. The maximum value on secondary display is 9999. |
Low Battery Indicator | When the LCD displayssymbol, please replace the battery. |
Sampling Rate | 1 sample per second |
Power Supply | One 9V battery, NEDA 1604, IEC 6F22 or JIS 006P |
Battery Life | 200 hours during consecutive use |
Dimensions | 130 × 56 × 38 mm (L×W× H) |
Weight | 200g (excluding the battery) |
Accessories | User manual, battery, carrying case , Temperature and humidity probe |
Operating Temperature and Humidity | 0°C ~ 60°C |
Storage Temperature and Humidity | -10 to 60°C |
Temperature Measurement Range | -20.0°C ~ +60.0°C (-4.0°F~140°F Humidity) |
Humidity Measurement Range | 10% ~ 99%RH |
Accuracy:Humidity | ±3% (20%~80%RH,@25℃) ±5% (80%,@25℃) |
Accuracy:Temperature | ± 0.8℃, ±1.5℉ |
