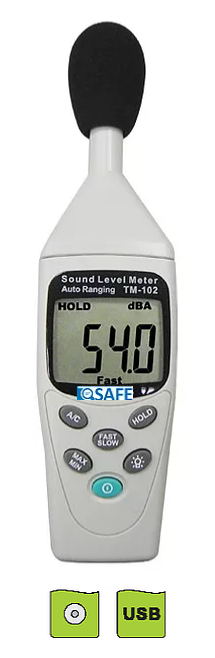

TM-102 Sound Level Meter
This Sound Level Meter has been designed to meet the measurement requirements of safety Engineers, Health, Industrial safety offices and quality control in various environments.
Features
- Test range: 30-130dB.
- USB interface, 14,000 records datalogger.
- According to standard :EN61672 type 2.
Functions
- Data hold.
- Max / Min.
- Auto power off.
- Auto Ranging.
- Backlit display.
- Time Weighting : Fast, Slow.
- Frequency Weighting : AC .
- Dimension : 200x56x32mm(LxWxH)
- Weight : 290g.(including battery)
Technical Specifications
Items | Descriptions |
---|---|
Microphone | 1/2 inch Electret condenser microphone |
Resolutlon | 0.1dB |
Accuracy | ± 1.5dB(ref 94dB@1KHz) |
Level range | Lo :30 -BOdB Med :50-1OOdB Hi :80 - 130dB |
Dynamic range | 50dB |
Frequency range | 31.5Hz - BKHz |
