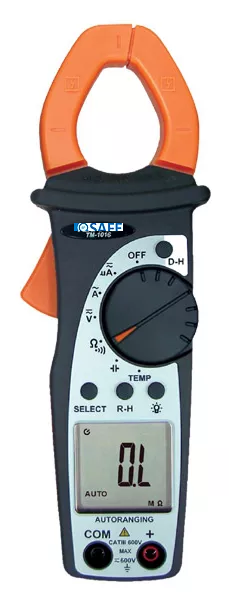

TM-1016 400A HAVC Autoranging AC Clamp Meter

The TM-1016 clamp meter can measure AC current of up to 400A, and can measure ACV, ACA, DCV, DCA, Resistance, Continuity, Capacitance, and Temperature.




Get A Quote

Features

  • 3 3/4 digits LCD with backlit and analog bargraph.
  • Test range : ACA/uA, DCA/uA, ACV, DCV, Ω, Continuity, Capacitance and Temperature.
  • Use the test leads to measure the ACuA and DCuA.
  • Double injection outer case.
  • Continuity buzzer.(<40Ω)
  • Overload indication.
  • Low battery indication.
  • Auto range.
  • Auto power off. (30 minutes)
  • D-H : data hold.
  • R-H : range hold.

Downloads

Technical Specifications

Items Descriptions
Max measuring current 400A
Display counts 4000 Count Backlit LCD
Max conductor size 30mm (11.8”)
AC Current 0.1~4000uA/O.O1A~400A ±(2.0% +10)
DC Current 0.1~4000uA ±(1.0% +2)
AC Voltage 1mV~600V ±(1.0% +3)
DC Voltage 1mV~600V ±(0.8% +2)
Resistance 0.1Ω~40MΩ ±(0.8% +2)
Temperature (K-Type) (Thermocouple : optional) -50°C~1200°C and 158°F~1999°F
Power supply 2 batteries 1.5V AAA type.
Dimension 205x64x39 mm.(LxWxH)
Weight 280g.(including battery)
Select selection button for the composite functions of ACuA I DCuA, ACV I DCV and 0 I Continuity.
